Understanding guitar 5 way switch positions is one of the simplest ways to discover more sounds from your electric guitar. Each setting selects a pickup or pickup combination, changing the balance of brightness, warmth, attack, and clarity.
Whether you play rock, funk, blues, pop, or metal, learning the selector helps you choose a tone for riffs, chords, and solos.
This guide explains the five positions, compares SSS and HSS wiring, and provides practical sound exercises you can try immediately.
What Is a Guitar 5-Way Switch?
A guitar 5-way switch selects which pickups are connected to the output. On many Stratocaster-style electric guitars, five settings let you hear the bridge, middle, and neck pickups individually or in pairs. The result is a range of tones without changing your amplifier or effects.
A pickup senses vibrating metal strings and converts their motion into an electrical signal. Its position along the string, construction, and wiring affect the sound you hear. A bridge pickup generally emphasizes a brighter attack, while a neck pickup often sounds rounder.
The numbered positions in this guide follow the common convention: Position 1 is closest to the bridge end of the selector's travel, and Position 5 is closest to the neck end. Always check your guitar's wiring diagram if the layout differs.
Bridge pickup: Typically a brighter, more cutting sound that suits defined riffs.
Neck pickup: Typically a warmer, fuller sound that suits smooth melodies.
Guitar 5-Way Switch Positions Explained
On a conventional SSS guitar, Positions 1, 3, and 5 select individual pickups, while Positions 2 and 4 combine adjacent pickups. An HSS guitar may use a different combination at Position 2.
Position 1: Bridge Pickup
Bright, focused, and articulate. Often preferred for crunchy riffs and solos. On a typical HSS guitar this is the bridge humbucker.
Sound exercise: Play a palm-muted power chord with moderate overdrive.
Position 2: Bridge + Middle
On standard SSS wiring, these two single coils create a crisp, hollow, often “quacky” sound. HSS wiring may use a full or split bridge humbucker with the middle pickup.
Sound exercise: Try short, muted funk chords on a clean amp.
Position 3: Middle Pickup
Balanced and clear, sitting tonally between the bridge and neck positions.
Sound exercise: Strum open chords with light overdrive.
Position 4: Middle + Neck
Smooth, rounded, and subtly hollow, especially useful for clean chord textures.
Sound exercise: Try extended chords with a clean tone and gentle chorus.
Position 5: Neck Pickup
Warm and expressive with a softer attack; a popular starting point for blues leads.
Sound exercise: Play a slow melody with bends and light overdrive.
Switch position numbering and combinations can differ on modified or custom-wired instruments. Refer to the actual wiring diagram when in doubt.
5-Way Switch Positions Chart
Use this quick reference to compare the standard SSS pickup combinations and their typical tonal character.
| Position | Pickups | Typical tone | Good starting use |
|---|---|---|---|
| 1 | Bridge | Bright, cutting | Rock riffs and solos |
| 2 | Bridge + Middle | Crisp, hollow | Funk and pop rhythm |
| 3 | Middle | Balanced, clear | General rhythm |
| 4 | Middle + Neck | Warm, textured | R&B and clean chords |
| 5 | Neck | Rounded, smooth | Blues and melodies |
This table describes standard SSS wiring, not a verified switching diagram for any particular Scorpion model.
SSS vs. HSS: What Changes?
An SSS guitar has three single-coil pickups. An HSS guitar typically has a bridge humbucker with single-coil middle and neck pickups. The HSS design gives players a thicker, often quieter bridge option while retaining familiar single-coil tones elsewhere.
SSS Pickup Configuration
Three single-coil pickups typically provide bright, articulate sounds and familiar in-between combinations. Traditional single coils may produce electrical hum, although appropriately designed paired combinations can reduce it.
HSS Pickup Configuration
A humbucker at the bridge usually provides a fuller tone and rejects much of the hum associated with a single coil. The middle and neck positions retain single-coil character.
Does Position 2 Split the HSS Humbucker?
Not always. Some HSS circuits automatically split the bridge humbucker in Position 2; others combine the full humbucker with the middle pickup. The precise sound depends on the wiring, pickup design, and switch.
How to Hear the Differences: Sound Examples
The most useful way to learn the selector is to play the same musical phrase through each position at a consistent amplifier setting. These examples are playing exercises, not embedded recordings; add actual audio or video clips when they are available.
Clean chords: Strum the same four chords in all five positions and compare clarity.
Funk rhythm: Play muted sixteenth-note strokes in Positions 2 and 4.
Rock riff: Repeat a palm-muted riff in Positions 1 and 3 with moderate gain.
Blues lead: Play the same bend-and-vibrato phrase in Positions 1 and 5.
Audio/video publishing tip: Record one consistent phrase for each selector position using the same guitar, amp, gain, and microphone placement. Label each clip Position 1–5. No demo media is embedded here because no verified recordings were supplied.
Best Switch Positions for Different Genres
There is no universally best position. Use these recommendations as starting points, then adjust for your guitar, amp, pedals, and playing dynamics.
Rock: Start with Position 1 for attack and definition.
Metal: On HSS guitars, try the bridge humbucker for tight high-gain rhythm.
Funk: Try Position 2 for a crisp, percussive response.
Blues: Try Position 5 for smooth leads or Position 4 for warm rhythm.
Pop and indie: Explore Positions 2, 3, and 4 for versatile clean parts.
R&B and neo-soul: Try Position 4 for rounded chords with clear note separation.
How to Practice Switching Pickups
Spend a few minutes with the same riff in each position. Keep your volume and amplifier settings unchanged so the differences are easier to hear.
1. Begin With a Clean Sound
Set your amp clean and compare one chord in every position.
2. Repeat the Same Phrase
Use identical picking dynamics so the pickup change is the main variable.
3. Add Moderate Overdrive
Notice how attack and thickness change, especially at the bridge.
4. Try Tone and Volume Controls
Experiment with your guitar controls; their effect depends on its wiring.
5. Switch Between Song Sections
Try a warmer verse sound and a brighter chorus or solo.
Common 5-Way Switch Mistakes
Small assumptions about wiring and gain can make the selector harder to understand. These are the most common pitfalls.
Using Only One Position
Experiment with all five before deciding on a favorite.
Assuming All HSS Wiring Is Identical
Position 2 may use a split or full humbucker, depending on the instrument.
Comparing With Excessive Gain
Start clean to hear the differences more clearly.
Ignoring Technique
Picking location and attack can change tone as much as a selector move.
Explore HSS Tones With Scorpion Guitar

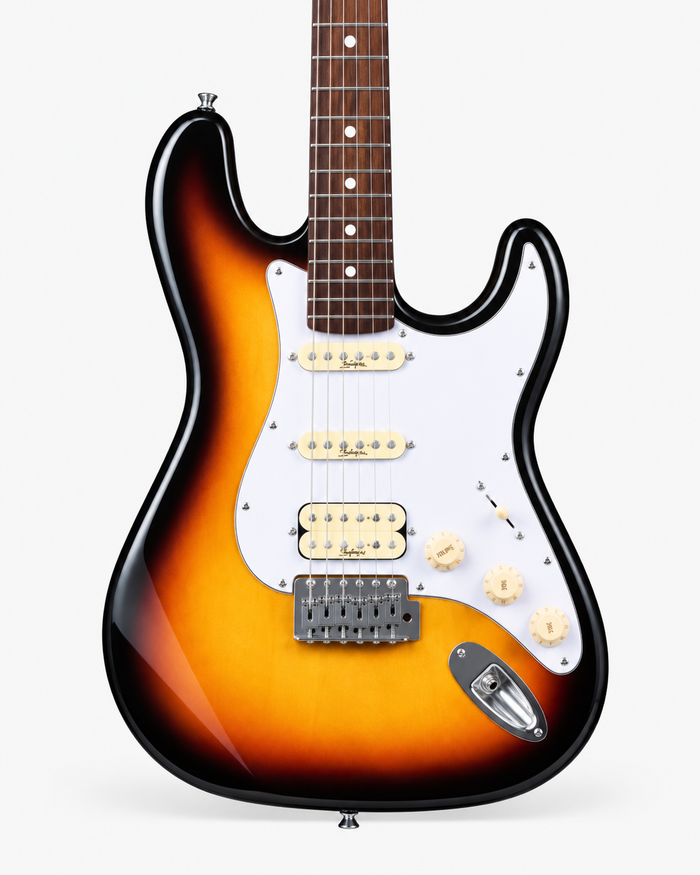

An HSS guitar can be a flexible option if you want powerful bridge sounds alongside clear middle and neck pickup tones. The Scorpion SS110 HSS Electric Guitar is a relevant model to explore when comparing this pickup layout.
Explore the Scorpion SS110 HSS Electric Guitar to learn more about an HSS-style instrument. Confirm the exact switching functions in the model specifications before assuming it uses automatic coil splitting.
Explore your sound: View the Scorpion SS110 HSS Electric Guitar.
Final Thoughts
Understanding guitar 5 way switch positions helps you shape your tone quickly. Start with the bridge for bite, the neck for warmth, and the combined positions for textured clean rhythm sounds. Listen to the same phrase across all five positions and let your ears guide the choice.
For an HSS option, explore the Scorpion SS110 HSS Electric Guitar, or visit Scorpion Guitar to discover more instruments.
Frequently Asked Questions
Below are answers to common questions about pickup selector positions.
1. What are the five positions on a guitar switch?
On a conventional SSS guitar: bridge; bridge and middle; middle; middle and neck; neck. Other wiring layouts can differ.
2. What does Position 2 do on a guitar?
On a typical SSS guitar it combines bridge and middle pickups. On an HSS guitar it may use the full or split bridge humbucker with the middle pickup.
3. Which pickup position is best for rock?
Position 1 is a common starting point because bridge pickups provide a focused attack. A bridge humbucker can sound particularly full with distortion.
4. Which pickup position is best for clean guitar?
Positions 2 and 4 are popular for textured clean rhythm sounds; Position 5 is useful for warmer melodies.
5. What is the difference between a 3-way and 5-way switch?
A common two-pickup 3-way switch selects bridge, both, or neck. A standard three-pickup 5-way selector adds two adjacent pickup combinations.
6. Is HSS better than SSS?
Neither is universally better. HSS offers a humbucker bridge option; SSS provides three single-coil pickup locations.
7. Can I change pickup positions while playing?
Yes. Players often change settings between song sections or during a solo.
8. Does switching pickups change volume?
It can. Pickup output, height, combinations, wiring, and amplifier settings affect perceived level.
